STEAM STERILIZER S1000
THE ECOSMART STERILIZER MADE TO LAST
Since its founding, MATACHANA’s development policy has been to produce long-lasting products. Proof of this are the S1000 sterilizers, which, with 25 years of experience, are still operating on the market. Experience, complete production control, and the use of the highest quality 316L stainless steel provide the level of confidence necessary to offer a lifetime warranty (15 years) on the chamber of all new S1000 sterilizers.
MATACHANA has always maintained that the ejector vacuum system is the preferred solution. Over the past 30 years, the ejector has proven its efficiency, effectiveness, and, above all, reliability compared to other vacuum systems. Its high reliability and low maintenance costs have led us to apply a lifetime warranty (15 years) to the ejector of all S1000 sterilizers.
+ SUSTAINABILITY
Sustainable Innovation: The Future Is Here
At MATACHANA, our corporate responsibility drives us to lead the way towards sustainability. Every step in the development of our products is designed to minimise environmental impact.
We are committed to reducing CO2, analysing each stage of production to identify and eliminate unnecessary emissions. This effort is just the beginning of our mission towards completely carbon-neutral production.
The S1000 has been designed with sustainability as an absolute priority. Every aspect of its development has focused on reducing environmental impact, ensuring that this product not only meets the highest quality standards but also promotes a greener and more responsible future.

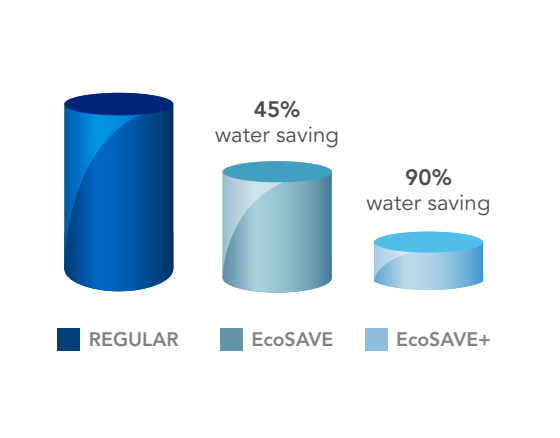

Water saving
Two new configurations which will allow to save water during regular operation.
Up to 45% water saving per cycle, thanks to built-in cooling coil connected to the facility’s chilled water system in a close loop (included as standard).
Up to 90% water saving per cycle, thanks to the built-in heat exchanger and pump connected to the facility’s chilled water system in a close loop (optional configuration).
Energy saving
New steam generator insulating material and the Smart steam generator management combined with the Auto Power off and Auto Start Week, as standard configurations, represents up to 15% energy saving.
SUSTAINABLE COMPONENTS: COMMITMENT TO THE ENVIRONMENT
The accurate selection of stainless steel suppliers, as well as MATACHANA’s
proximity supplier policy allows a 20% carbon foot print reduction.
We use wood from sustainable forests, which reinforces our commitment to ecology and makes the S1000 a true EcoSmart sterilizer.
+ ERGONOMICS
With a wide range of charging solutions, including trolleys and automatic charging systems, the S1000 is designed to meet the highest demands. This approach takes ergonomics to the next level, ensuring comfort and efficiency with every use.
Shelf rack for baskets and containers
Multiple height adjustment for the shelves to maximize the loading capacity
- Available from 4 up to 10 SM
- Possibility to add up to 6 levels of shelves
TROLLEYS
Shelf racks
- Available from 4 up to 10 SM
- Fixed height and adjustable height versions
- Compatible with automatic loading systems
Effortless
- Provided by the automatic trolley, it allows to load and unload the racks just by pressing a button in the control panel
EasyCHARGE
- For stackable baskets and containers
- Available from 4 up to 10 SM
- Fixed height and adjustable height versions
- No empty rack return is needed
ATS
(Automatic Transfer System)
MATACHANA ATS (Automatic Transfer System) is a fully automated system for loading or unloading baskets, containers or racks which uses a single shuttle to move into the first available sterilizer.
Robot
AL 10
AL10 robot (compatible with automatic loading systems) is a robotic system designed to transport containers and baskets from the preparation tables to the sterilizers, performing the transfer onto automatic modules and providing an innovative loading and unloading solution.
+ CONNECTIVITY
EasyVIEW® is a web server application specially developed for healthcare centers looking for improving their RUMED reprocessing workflow and equipment documentation management.
The application offers several benefits by means of the real-time data acquisition of up to 25 devices and can be displayed on computers, tablets and smartphones, IOS and Android.
MATACHANA has always been at the forefront of connectivity and back in 1998 developed EasyLOOK, the first version of data management solution. In 2024 the new and improved version is born – EasyVIEW®.
Double touch screen panels (applicable for double door sterilizers), allow users to control and monitor the sterilizer from both sides, optimizing workflow and enhancing the sterilizer’s usability.
EasyRUN is an intuitive and easy-to-use interface to operate MATACHANA devices. It is implemented in the MATACHANA Product Ecosystem, simplifying and speeding up the user training on any infection prevention and control product
EasyRUN interface is now implemented in both loading and unloading side of the S1000 sterilizer as a standard feature and positioned at optimal ergonomic height (<1.5 metres)
RUMED WORKFLOW OPTIMIZATION
- Real time equipment monitoring
- Productivity statistics
- Visualization in multiple devices
- Full cycle history
- Cycle report searching engine
GUARANTEED TRACEABILITY
- Fully Integration with external traceability software
- Extended compatibility
- Cycle analysis
- Remote troubleshooting connection
- Automatic email notification to the Technical Service
+ FEATURES AND + ADVANTAGES that make the difference
Air activated door gasket for maximum safety for the end user and a device high available rate.
High quality AISI 316L steam process pipework with Tri-clamp fittings to ensure steam quality and long-term reliability.
Process monitoring:
- EasyCHECK – Built-in electronic B&D
- Automatic air detector
- Independent chamber pressure and temperature sensors
Double water tank design with an integrated preheating system to reduce the % of Non- Condensable Gases (NCG) in steam generator feeding water (according to EN 285).
Full jacket to maximise the heat distribution and minimise possible chamber condensation
Vertical sliding door movement with pneumatic operation, which offers high reliability and low maintenance costs.
Status of the unit visible from a distance, thanks to the backlit panel.
